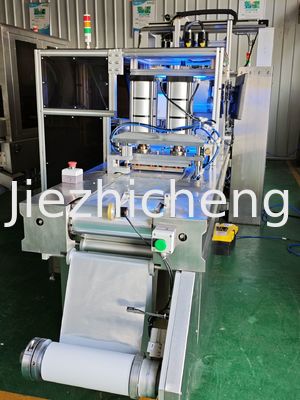

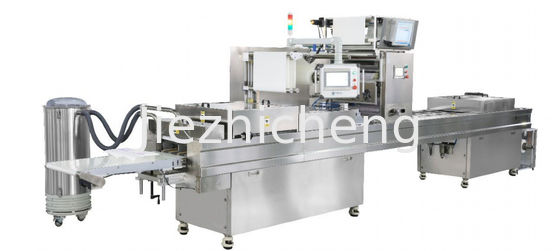

Packaging Equipment for Absorbable Surgical Suture Blister Sealing & Forming Line

Function of Machine:

This machine is used for packaging process on medical blister package sealing, including absorbable surgical suture sealing.such as punch forming, automatic loading, monitoring on line, thermal seal of dialysis paper, blister package thermal sealing, automatic cutting and waste collection. Printing function is also inclusive.

.

Technical parameters:

1. Dimensions:7*1.55*2.1meter (length*width*height)

2. Power supply: 380V 50Hz

3. Equipment Power: 7KW

4. Air source: 0.6MPA

5. Operation system: Programmable controller PLC pls friendly man-machine interface display.

Configurations:

1. Pneumatic components: Airtac cylinder

2. Switch control button: Izumi, Japan

3. PLC: Siemens

4. Operation interface: Kunlun Tongtai

5. Motor: INOVANCE

6. Electric control components: LS

• Switch power supply: MEANWELL
• Bearing: NSK

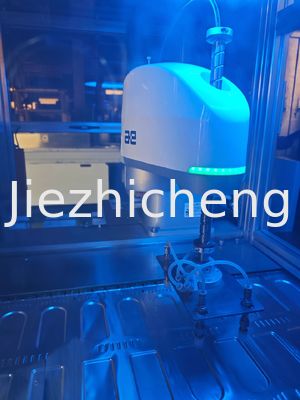

• Robot: Peitian (ae)
• Welding system: developed by JZC

Range of Application:

OEM packaging are acceptable in terms of aluminum-plastic material fished packs and sterilization packs of medical disposables.

Highlight:

1.It can realize automatic operation through PLC programming setting as well as automatic stop by the setting of counting, quantification, material used out, failure and emergency stop.

1. It is compatible with three tape of packaging: two-piece connection disc for square shape and round shape, rectangle shaped four-piece connection.

2. It can achieve automatic lasting production due to its high processing precision and high producing efficiency.
