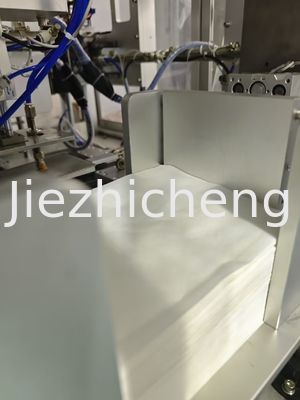

Medical Oxygen Nasal Cannula (Tube) Assembly Machine

This machine is used for automatically packaging process on 1600-2100mm length of oxygen absorbing tubes winding and packing into bags, bags cutting and binding process to finished products. Except for manual loading, other processes are finished by magic hand. All packaging automation leads to high efficiency and cost saving.

Output: 2pcs/7seconds

Technical parameters:

1. Dimensions:3.2*2.1*1.627meter (length*width*height)

2. Power supply: 220V 50Hz

3. Equipment Power:4.5KW

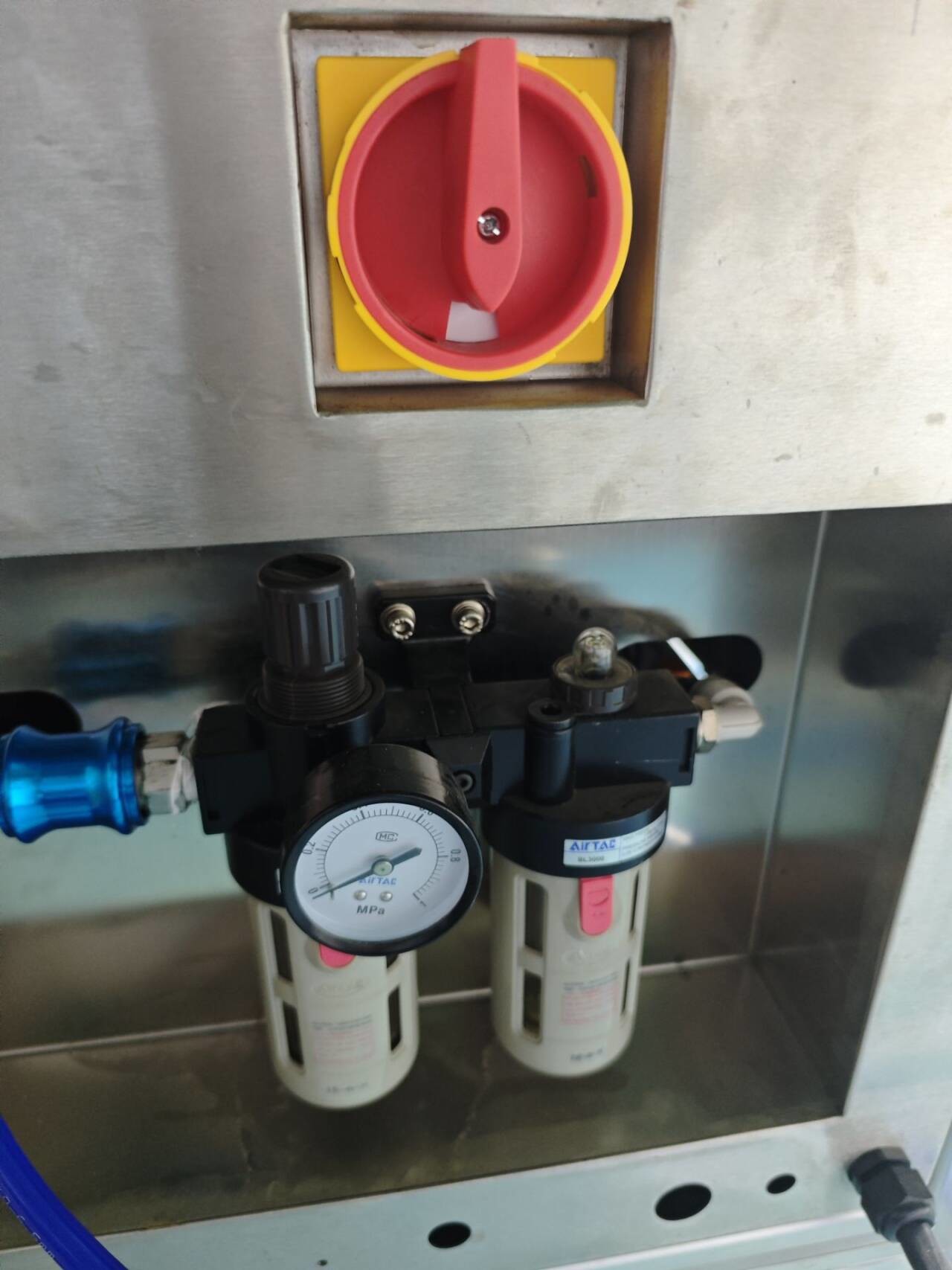

4. Air source: 0.5-0.7MPA (machine can not work normally when air source is lower than 0.5MPA)

5. Operation system: Programmable controller PLC pls friendly man-machine interface display.

Configurations:

1. Pneumatic components: Airtac cylinder

2. Switch control button: Izumi, Japan

3. PLC: OMRON

4. Operation interface: Kunlun Tongtai

5. Motor: INOVANCE

6. Electric control components: LS

• Switch power supply: MEANWELL
• Rail system: Shangyin

Range of Application:

Medical Oxygen Nasal Cannula (tube) automatic packaging and OEM/ODM items acceptable for other medical cannula and consumable

goods.

Highlight:

1. It adopts servo motor driving mode to make displacement more accurate.

2. As per two out of one mode, one man is enough to manipulate the machine.

3. Compact and resonable structural design makes operation and maintenance more humanized.

4. Automatic counting function is available.
