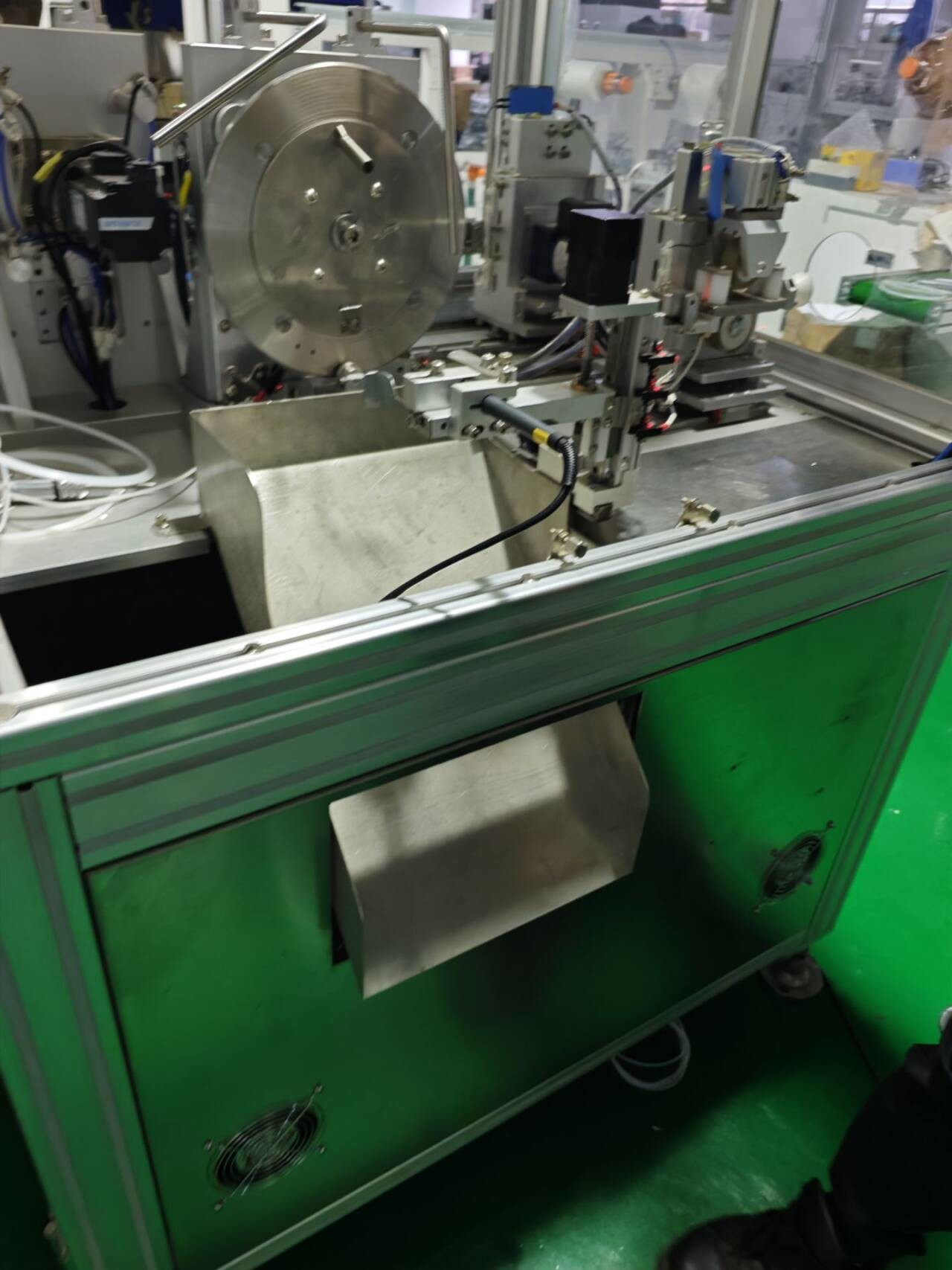

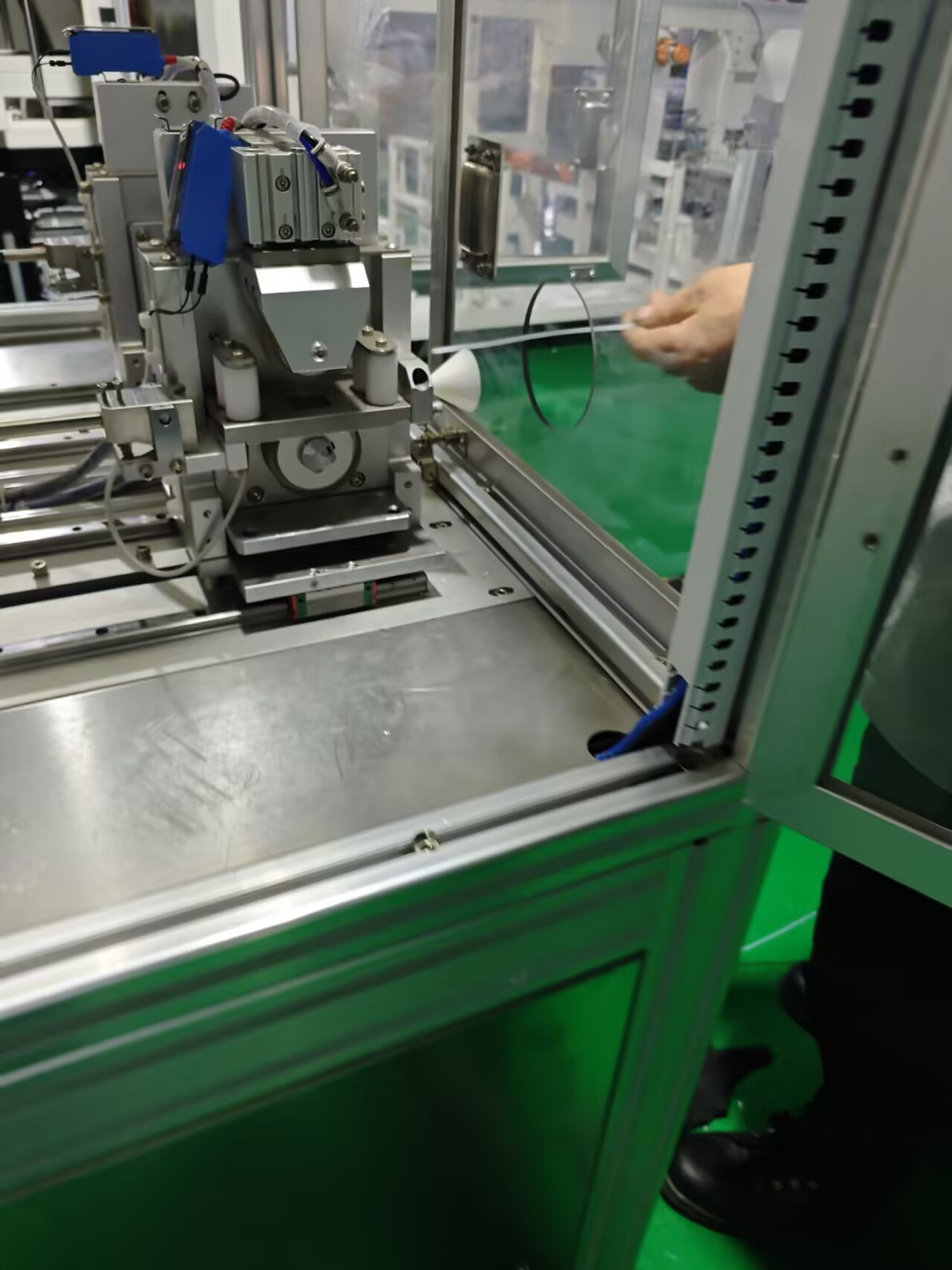

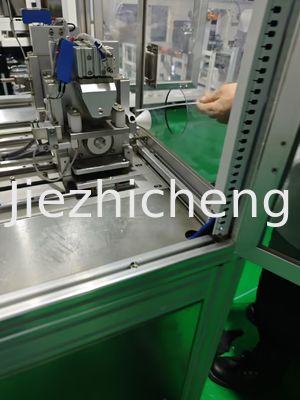

Medical Guide Wire Protecting Tube Welding Machine

This machine is used for coiling & welding for medical static wire protecting tube. It can be supplied different mould based on various products. With dual station function, it can achieve manual feeding, automatic tube conveying and coiling, welding after one turn and unloading after welding automatically. It can applicable for different size requirement from all kinds tubes. Its heating system owns high frequency and temperature adjustable function, leading to low energy consumption and high production efficiency.

Output: 2pcs/45seconds

Technical parameters:

1. Dimensions:1.2*0.9*1.8 meter (length*width*height)

2. Power supply: 220V 50Hz

3. Equipment Power:2.5KW

4. Air source: 0.6MPA

5. Operation system adopts PLC (programmable controller) plus friendly human-machine interface.

Configurations:

1. Pneumatic components: Airtac cylinder

2. Switch control button: Izumi, Japan

3. PLC: Inovance

4. Operation interface: Kunlun Tongtai

5. Motor: Inovance

6. Electric control components: LS

• Switch power supply: MEANWELL
• Bearing: NSK

Range of Application:

This machine is used for coiling & welding for medical static wire protecting tube. The diameter and length of tube can be customized.
