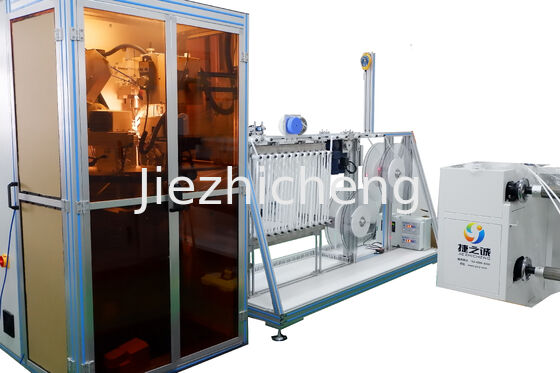

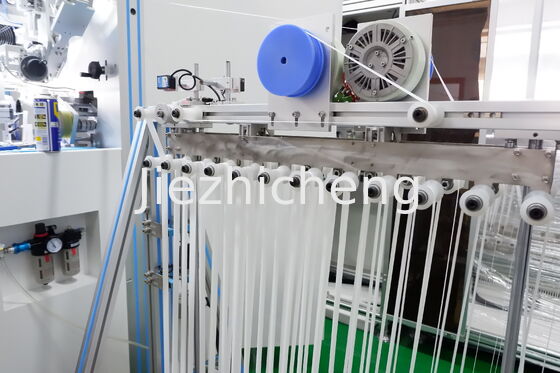

High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005

  • High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005
  • High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005
Place of Origin Suzhou,China
Brand Name JZC
Model Number JZC-GLM005
Minimum Order Quantity 1
Price Negotiable
Packaging Details Negotiable
Delivery Time 120 days
Payment Terms Western Union
Supply Ability 10 Units per 120 days
Product Details
Applicable Material Non-woven Fabric Membrane Thicknessrange 10 To 500 Microns
Controlsystem PLC With Touchscreen Interface Weight Approximately 2000 Kg
Membranetype Ultrafiltration, Nanofiltration, Reverse Osmosis, Microfiltration Operatingtemperaturerange 0°C To 80°C
Production Beat 2-3slices In 1 Minute Coolingsystem Water Cooling Or Air Cooling Options
Automationlevel Semi-automatic To Fully Automatic Equipmenttype Membrane Fabrication Machine
Powersupply 380V, 50Hz, 3-phase Productioncapacity Up To 1000 Square Meters Per Day
Dimensions Length 4000mm X Width 1500mm X Height 1800mm Materialcompatibility Polymeric Materials Such As PVDF, PES, PAN, And Others
Tubular Membrane Diameter φ5、6、8、10mm
Leave a Message
Product Description

Product Description:

High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005

High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005 0High Speed Production Equipment For Tubular Membranes Automatic Water Treatment Film Assembly Machine GLM005 1

Configuration indtruction:

1. Pneumatic components: SMC cylinder;

2. Electronic control PLC: Omron;

3. Operation interface: use 10.5 inch touch screen;

4. Displacement sensor: SICK imported from Germany;

5. Servo motor: Japan Yaskawa Eletric;

6. Line rail: Taiwan Shangyin;

7. Bearing: Japan NSK.



Device Parameters:

1. Scope of application: suitable for welding of membrane tubes with diameters of 5,6,8,10, and 12.7 mm;

2. Applicable non-woven fabric width: 17.5, 18.7, 20.5, 24.5mm;

3. The width range of the non-woven fabric welding joint is 0.5-3 mm and total thickness of the non-woven fabric is 0.1-0.5mm;

4. The speed of domestic non-woven fabrics can reach 3.2-3.6 m/min, and the speed of imported non-woven fabrics can reach 5.2-6m/min;

5. It is suitable for feeding different kinds of trays;

6. It has the alarm function of material shortage, which can meet the non-stop refueling and improve production efficiency;

7. One-time completion of coiled pipe, welded pipe and inner scrappng film;

8. Equipped with cloth extension control device to meet the constant tension during welding and ensure stable welding;

9. Equipped with a fabric thickness detection sensor to prevent wrong refueling and improve welding stability.
