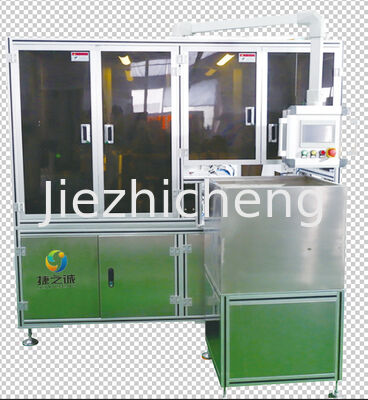

Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation

  • Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
  • Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
  • Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Place of Origin Jiangsu, China
Brand Name JZC
Model Number JZC-DXF001
Minimum Order Quantity 1
Price negotiable
Packaging Details negotiable
Delivery Time 90-120 days
Payment Terms Western Union
Supply Ability 10 sets per 120 days
Product Details
Productname Check Valve Assembly Machine Operatingmode Semi-automatic / Fully Automatic
Safetyfeatures Emergency Stop, Safety Guards Controlsystem PLC Control With Touch Screen Interface
Dimensions 1500 Mm X 1200 Mm X 1600 Mm Maintenance Easy Maintenance With Modular Design
Materialcompatibility Plastic Valve Components Materialfeedingmethod Automatic Feeder
Machinetype Automated Assembly Equipment Application Assembly Of Check Valves
Airpressurerequirement 0.6 MPa Machineweight Approx. 500 Kg
Powersupply 220V/380V, 50/60Hz Assemblyaccuracy ±0.01 Mm
Leave a Message
Product Description

Product Description:

Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation

Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation 0Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation 1

Equipment Function:

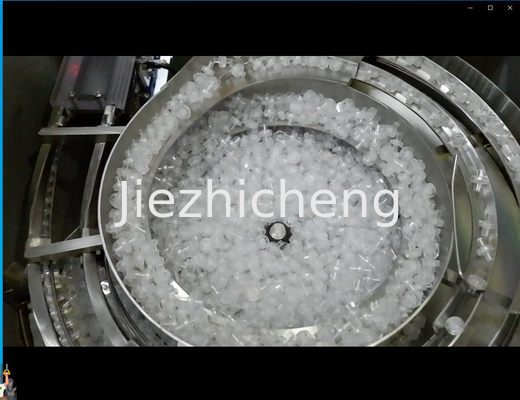

1. Automatically feeding device;

2. With automatic hose positioning and loading mechanism;

3. With automatic coating UV glue and cyclohexanone mechanism;

4. With luer automatic assembly mechanism;

5. It has automatic assembly mechanism of one-way valve;

6. With one-way valve UV curing mechanism;

7. Automatic detection mechanism for product ventilation;

8. Defective product screening agency;
9. Complete safety protection device.



Technology parametres:

1. Power supply: 380V50HZ;

2. Power: 3.0KW;

3. Air supply: 0.5-0.7mpa( Equipped with low pressure detection sensor, ensure the production process of good field);

4. The operating system adopts programmable controller PLC and man-machine interface display.



Configuration instructions:

1. Pneumatic components: SMC cylinder;

2. Electric control PLC: Omron;

3. Operation inerface: Siem:

4. UV lamp and controller: Omron;

5. Digital dispensing machine: Meiyuan;

6. Stepping motor: Panas;

7. Servo motor: Panas;

8. Liner guide rail: WIHIN;

9. Bearing NSK, Japan.



Application Scope:

Suitable for luer and hose length of 80mm--100mm assembly and testing. Size can be customized.
