Medical Hose Coiling and Binding Machine High Speed Automated Manipulator Operating Winding And Bundling Equipment For Connetor Tubes LJG001

  • Medical Hose Coiling and Binding Machine High Speed Automated Manipulator Operating Winding And Bundling Equipment For Connetor Tubes LJG001
  • Medical Hose Coiling and Binding Machine High Speed Automated Manipulator Operating Winding And Bundling Equipment For Connetor Tubes LJG001
Place of Origin Jiangsu, China
Brand Name JZC
Model Number LJG001
Minimum Order Quantity 1
Price Negotiable
Packaging Details Negotiable
Delivery Time 120 days or more
Payment Terms T/T
Supply Ability 10 Sets Per 120 days
Product Details
Order Number 0054 Overall Size 3780×640×1560mm
Materialcompatibility Plastic, Paper, Foil, Laminates Length 1.6M
Weight 800kg Productname Medical Device Packaging Machines
Safetyfeatures Emergency Stop, Safety Guards, CE Certified Material Feeding Automatic Tube Feeding System
Sealingtype Heat Sealing, Ultrasonic Sealing Compliance Standards ISO 11607, FDA CFR 21 Part 820
Dimensions Customizable Powersupply 220V/380V, 50/60Hz
Applicable Tube Diameter 2mm To 12mm Machinetype Automated Packaging Machine
Safety Features Emergency Stop Button And Safety Guards
Leave a Message
Product Description

Product Description:

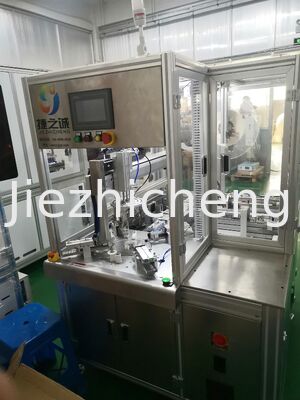

Medical Hose Coiling and Binding Machine High Speed Automated Manipulator Operating Winding And Bundling Equipment For Connetor Tubes LJG001

Medical Hose Coiling and Binding Machine High Speed Automated Manipulator Operating Winding And Bundling Equipment For Connetor Tubes LJG001 0

Equipment Function:

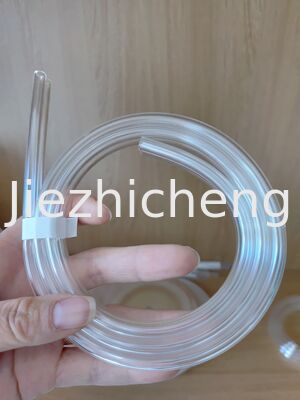

The equipment is used for 980-1050 or 920-940 mm in length and 6.4-6.7 mm in outer diameter; PVC soft, paralleel double pipe coil, binding, welding, munual feeding, automatic coil, binding and welding and other functions. The processing is automated, which is more efficient and cost-efficient.

1. Production efficiency, 6s/piece;

2. The length of the welding position between the hose tail and strapping belt can be set;

3. After 120 high temperature sterilization, the strapping strength of the strapping catheter remained;

4. Different fixture can be designed according to the length of the hose, which is universal;

5. The compact and reasonable structure design make the operation and maintenance more humanized;

6. With automatic counting function.



Technology Parametres:

1. External dimension: 1.4*0.9*1.7M;

2. Power supply: 220V,50HZ;

3. Equipment power: 2.0KW;

4. Air source 0.5-0.7MPA (the equipment can not work normally when the air pressure is lower than 0.5MPA);

5. The operation system uses PLC to display the interface.



Configuration instruction:

1. Pneumatic components: AirTAC cylinder;

2. Switch control button: IDEC Japan;

3. PLC: Siem;

4. Operation interface: Siem;

5. Motor: Panas;

6. Electric control module: LS;

7. Switching power supply: Mingwei;

8. Bearing: NSK;

9. Welding system: JZC development.



Application scope:

It is suitable for the coil binding of various plastic pipes. The length of the pipe can be customized without standard.
