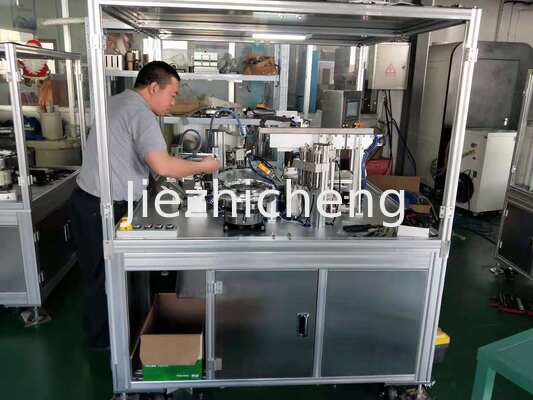

Full Automatic Medical One-Way Valve Assembly Equipment with Gluing & UV Curing Function Automated Check-Valve Assembly Line ZCS001

Product Description:

Full Automatic Medical One-Way Valve Assembly Equipment with Gluing & UV Curing Function Automated Check-Valve Assembly Line ZCS001

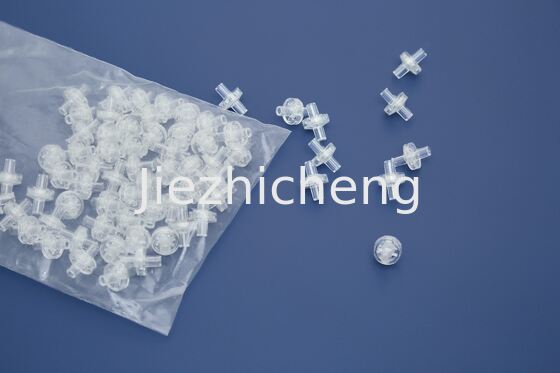

The equipment is used for one-way valve assembly, automatic loading and unloading, gluing, assembling diaphragm, assembling valve, UV curing and automatic blanking. The processing process is automated, which is more efficient and cost-effective.

Production efficiency, 8s out of 2 products;

Adopt one-out-two discharging mode;

The feeding mode of diaphragm is driven by servo motor, which makes the positioning of diaphragm more accurate;

Different fixtures can be designed according to different one-way valves, which is universal;

Compact and reasonable structure design makes operation and maintenance more humanized;

The equipment can automatically eliminate the defective products and has the function of automatic counting.

Technical Parametres:

Overall dimension: 1.61.51.8m;

Power supply: 220 V, 50 HZ;

Equipment power: 3.0KW;

Air source: 0.5 ~ 0.7MPA (the equipment cannot work normally when air pressure is lower than 0.5MPA);

The operation system adopts PLC with human-machine interface display.

Configuration list:

Pneumatic components: AirTAC cylinder;

Switch control button: IDEC Japan;

PLC: Siem...s;

Operation interface: Siem...s;

Motor: Pana...nic;

Electrical control module: LS;

Switching power supply: Mean Well;

Bearing: NSK.
