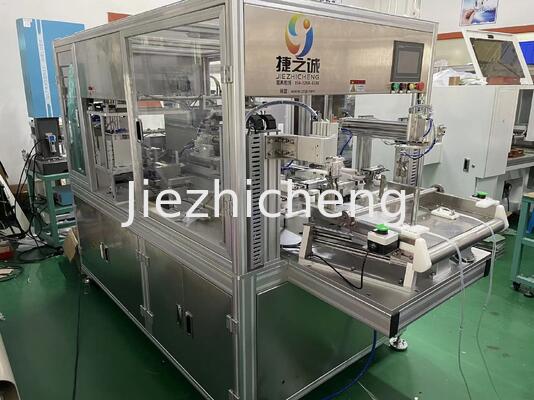

Surgical's Nasal Cannulas Automatic Coiling & Packing Machine Nasal Catheter Oxygen Tube Winding And Packaging Equipment PGJ001

Product Description:

Surgical's Nasal Cannulas Automatic Coiling & Packing Machine Nasal Catheter Oxygen Tube Winding And Packaging Equipment PGJ001

Equipment Functions:

The equipment is used for the packaging equipment of oxygen suction tube winding, cable tie and material transfer with a length of 1600-2100mm. Manual loading, automatic material transfer, winding, automatic bag cutting, automatic cable tie assembly and other functions.The packaging process is automated, which is faster and more efficient and saves costs. 1.Production efficiency, 7S produces 2 products;

2. Servo motor drive mode is adopted, and the displacement is more accurate; 3.One person can operate the machine, using one out of two;

3. Different treatment can be designed according to different hoses 5.Compact and reasonable structural design makes operation and maintenance more humanized.

6. Equipped with automatic counting function.

Technical parameters

1. Dimensions: 3.22.11.627m

2. Power supply:220V, 50HZ.

3. Equipment power: 4.5KW.

4. The air source is 0.5-0.7MPA (when the air pressure is lower than 0.5MPA, the equipment cannot work normally).

5.The operating system adopts programmable controller PLC plus friendly man-machine interface display.

Configuration instructions

1. Pneumatic components: AirTAC cylinder;

2. Switch control button: Japan Izumi;

3. PLC: Omron;

4. Operation interface: Kunlun Tongtai;

5. Motor: Inovance;

6. Electrical control components: LS;

7. Switching power supply: MEAN WELL;

8.Guide rail: Shangyin;

Scope of application:

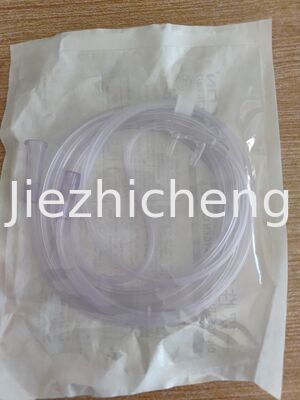

Automatic coil bandage and bagging equipment for medical nasal oxygen tubes, Other medical tube consumable coil packaging can be customized!
