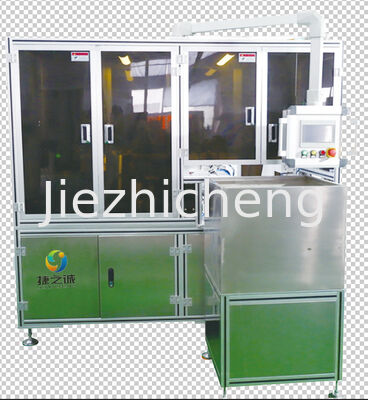

Fully Automated Machine for Medical One-way Valve To Hose Assembly Automatic Luer Tip Integrated Luer Connector & Check Valve Auto Assembly Equipment DXF001

Product Description:

Fully Automated Machine for Medical One-way Valve To Hose Assembly Automatic Luer Tip Integrated Luer Connector & Check Valve Auto Assembly Equipment DXF001

Equipment Functions:

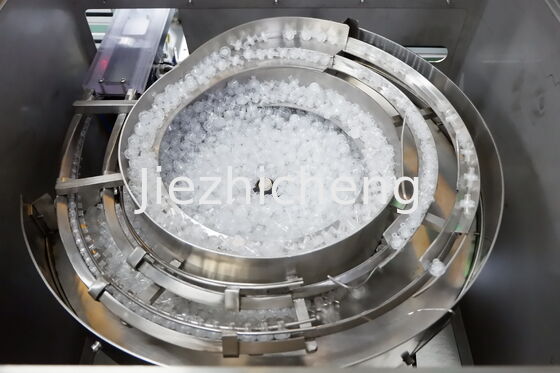

1. Automatically feeding device;

2. With automatic hose positioning and loading mechanism;

3. With automatic coating UV glue and cyclohexanone mechanism;

4. With luer automatic assembly mechanism;

5. It has automatic assembly mechanism of one-way valve;

6. With one-way valve UV curing mechanism;

7. Defective product screening agency;

8. Complete safety protection device.

Technical Parametres:

1. Power supply: 380V 50Hz;

2. Power: 3.0KW;

3. Air supply: 0.5-0.7mpa(Equipped with low pressure detection sensor, ensure the production process of good yield);

4. The operating system adopts programmable controller PLC and man-machine interface display.

Configuration Specification:

1. Pneumatic components: SMC cylinder;

2. Electric control PLC: Omron;

3. Operation interfac: Sie...s;

4. UV lamp and controller: Omron;

5. Digital dispensing machine: Meiyuan;

6. Stepping motor: Pana..nic;

7. Servo motor: Pana..nic;

8. Linear guide rail: WIHIN;

9. Bearing: NSK, Japan.

Suitable for Luer and hose length of 89mm~ 100mm assembly and testing Size can be customized.
