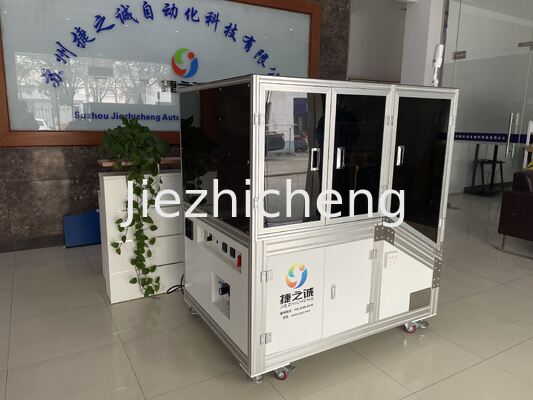

PTFE Hollow Fiber Membrane Tubular Film End Sealing Machine PVDF Hollow Fiber Membrane Sealing Equipment FDSB001

Product Description:

PTFE Hollow Fiber Membrane Tubular Film End Sealing Machine PVDF Hollow Fiber Membrane Sealing Equipment FDSB001

Equipment Function:

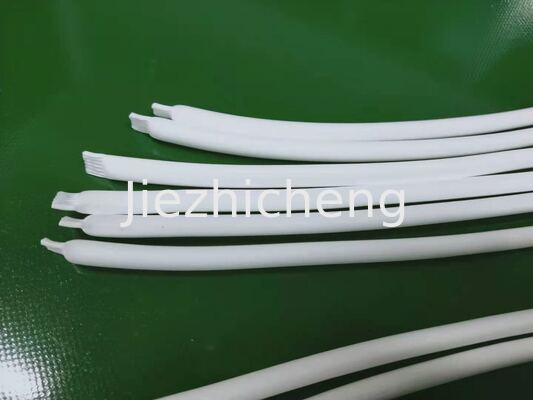

The equipment is used for PTFE hollow fiber membrane (tubular membrane)processing,with automatic unwinding,fixed-length cutting,and one-end welding functions.The process is automated,Faster,more efficient,and cost-saving.

1.Production efficiency,2m/min;

2.The cutting length can be set;

3.The welding time and temperature can be set,with temperature overload;

4.According to the size of the unwinding reel,it can be matched with different unwinding reel support frame sizes;

5.Compact and reasonable structural design makes operation and maintenance more humanized;

6.Equipped with automatic counting function;

Technical parametres:

1.Power supply three-phase 220V,50HZ;

2.Equipment power 2.5KW;

3.The air source is 0.50.7MPA(when the air pressure is lower than 0.5MPA,the equipment cannot work normally);

Configuration Specification:

1.Pneumatic components:AirTAC;

2.Switch control button:Japanese lzumi;

3.PLC:Omron;

4.Operation interface:Omron;

5.Motor:Panas.nic;

6.Electrical control components:LS;

7.Switching power supply:MEAN WELL;

Scope of application:

The equipment is used for PTFE hollow fiber membrane (tubular membrane)processing,with functions ofautomatic unwinding,fixed-length cutting,and one-end welding.The processing process is automated,whichis faster and more efficient and saves costs.
