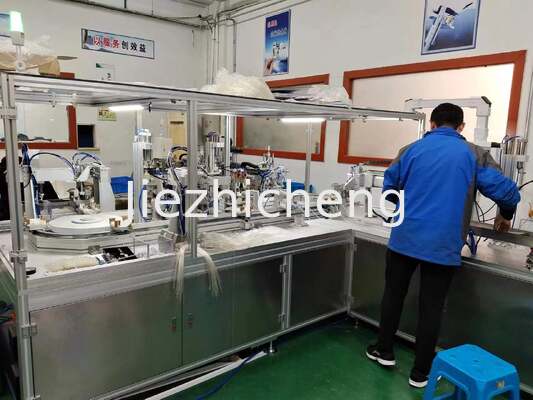

Extension Tube Automatic Assembly Machine With Vision Inspection Custom Medical Tubing Assembly Machine WYG001

Product Description:

Extension Tube Automatic Assembly Machine With Vision Inspection Custom Medical Tubing Assembly Machine WYG001

Equipment Function:

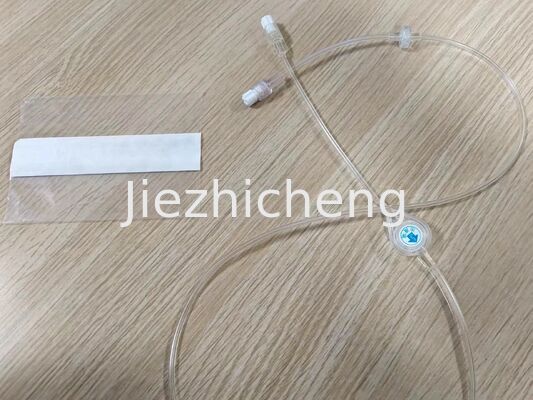

The equipment is used for the automatic assembly of the one-way valve of thee pitaxial tube of the analgesic pump with a length of 1000mm and an outer diameter of 3mm with a Luer connector,to detect air leakage,and to automatically discharge defects.Fully auto-mated production reduces labor cost sand is faster and more efficient.

1.Production efficiency,8S/2 pieces;

2.Automatically install joints,detect whether the trachea is ventilated,and eliminate bad ones.

3.Compact and reasonable structural design makes operation and maintenance more humanized.

4.Equipped with automatic counting function.

Technical Parametres:

1.Overall dimensions:length 1.5*width 1.2*height 1.8m Power

2.supply:380V,50HZ.

3.Equipment power:3.5KW.

4.Air source 0.6MPA.

5.The operating system adopts programmable controller PLC plus friendly man-machine interface display.

Configuration specification:

1.Pneumatic components: Yadeke cylinder;

2.Switch control button:Japan lzumi;

3.PLC:Omron;

4.Operation interface:Kunlun Tongtai;

5.Motor:Inovance;

6.Electrical control components:LS;

7.Switching power supply:MEAN WELL;

8.Bearing:NSK;

9.Welding system:developed by JZC.

Scope Of Application:

Automatic joint assembly of extension tubes,detection of ventilation,coil bagging and sealing,non-standard customization is available!
