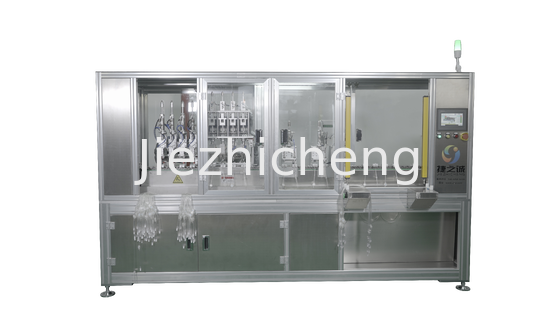

High Precision Medical PVC Tube Leak Test & Cap Screwing Assembly Equipment Compact Automatic Tube Assembly Testing Device With Counting & Defect Elimination Function JCNM001

Product Description:

High Precision Medical PVC Tube Leak Test & Cap Screwing Assembly Equipment Compact Automatic Tube Assembly Testing Device With Counting & Defect Elimination Function JCNM001

Equipment function:

The equipment is used for PVC flexible epitaxial tube detection and joint assembly,manual feeding,automatic detection,joint assembly and other functions. Production process automation,more efficient,cost saving

1.Production efficiency,2 products in 7-8s;

2.Using servo motor drive mode,the displacement is more accurate;

3.One person can operate the machine in the way of one out of two;

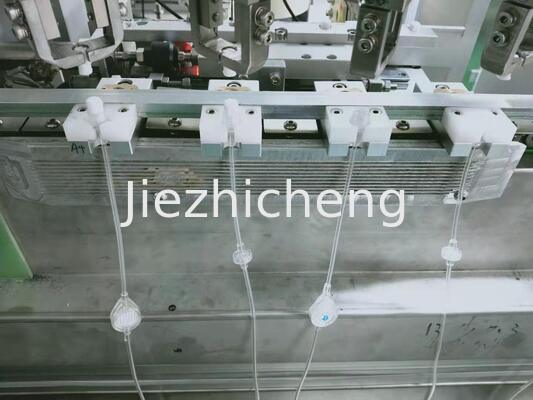

4.Different fixture can be designed according to different hose,which is universal;

5.The compact and reasonable structure design makes the operation and maintenance more humanized.

6.The equipment has the function of automatically eliminating defective products and counting

Technical Parametres:

1.Overall dimension:2.7*1.1*1.7m;

2.Power supply:220V,50 HZ;

3.Equipment power:4.5KW;

4.The air source is 0.5～0.7MPA(when the air pressure is lower than 0.5MPA,the equipment cannot work normally).

5.The operation system uses PLC to display the interface.

Configuration Specification:

1.Pneumatic components: AirTAC cylinder;

2.Switch control button:IDEC Japan;

3.PLC:Siem.ns;

4.Operation interface:Sie.ens;

5.Motor:Panas.nic;

6.Electrical control module:LS;

7.Switching power supply:Mingwei;

8.Guide rail:Shangyin.

Scope Of Application:

It is suitable for medical tube (other tube)to detect air leakage,screw cap,and automatically detect and eliminate defective products.
