Fully Automatic Suction Tube Gluing Joint Machine Pipe Bonding Inspection & Coil Packaging Equipment LJG002

Product Description

Fully Automatic Suction Tube Gluing Joint Machine | Pipe Bonding, Inspection & Coil Packaging Equipment

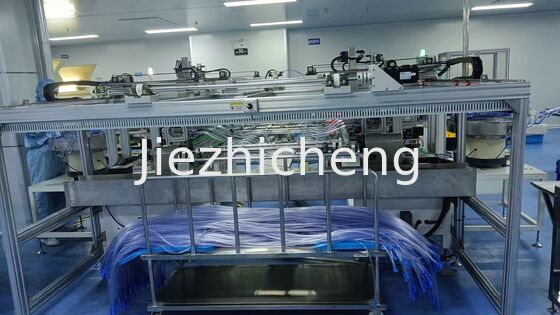

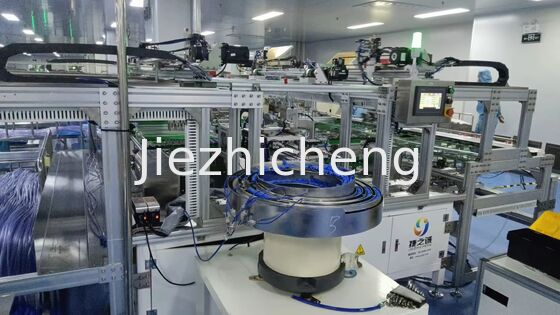

JIE ZHICHENG automatic connecting tube bonding and coil packaging machine is a fully integrated production equipment specially designed for suction tubes and connecting hoses. It can be directly connected with extruders to realize full-automatic production processes including robotic tube picking, automatic line gluing, pipe head bonding, and defective product detection and elimination.

Driven by high-precision servo motors, the equipment delivers accurate displacement and stable operation. It replaces manual operation completely, effectively reducing labor costs. With customizable jigs, the machine is compatible with various types of flexible hoses, featuring strong versatility. The compact and humanized structural design simplifies daily operation and maintenance, and the built-in automatic counting function realizes intelligent production statistics.

Supporting single-bag and double-bag packaging with customizable tube lengths, this all-in-one equipment is widely applicable for automatic joint assembly and coil packaging of various connecting tubes, providing efficient and reliable automated solutions for hose production enterprises.

Equipment Function:

Automatic gluing and bonding equipment for connecting pipes.The equipment is directly connected to the extruder,and the manipulator automatically grabs the pipe, moves it to the conveying line,automatically applies glue,and sticks the pipe head.And inspect the installed tubehead to rule out the bad ones.

1.Production efficiency:12 seconds/3 pieces;

2.Servo motor drive mode is adopted,and the displacement is more precise;

3.Fully automatic production,replacing labor,reducing labor costs;

4.Different jigs can be designed according to different hoses,with Versatility;

5.Compact and reasonable structural design makes operation and maintenance more humanized;

6.Equipped with automatic counting function

Technical Parametres:

1.Dimensions:3.5*3*1.5m;

2.Power supply:220V,50HZ;

3.Equipment power:4,5KW;

4.Air source 0.5~0.7MPA(when the air pressure is lower than 0.5MPA,the equipment cannotwork normally);5 .The operating system adopts programmable controller PLC plus man-machine interfacechia display.

Configuration Specification

1.Pneumatic components:AirTAC cylinder;

2.Switch control button:Japan lzumi;

3.PLC:Omron;

4.Operation interface:Kunlun Tongtai;

5.Motor:Inovance;

6.Electrical control components:LS;

7.Switching power supply:MEAN WELL;

8.Guide rail:Shangyin;

9.Chain line:Yiheda;

10.Linear module:Skylark;

Scope of Application:

Fully automatic adhesive joint assembly of suction tube(connecting tube),coil packaging equipment for connecting tube,single bag or double bag can be produced,and the length of the tube can be customized.
