Jiezhicheng Automatic DTRO Membrane Production Equipment Easy Operation Interface Advanced Technology DTRO Flexible Film Production Machine GLM006

  • Jiezhicheng Automatic DTRO Membrane Production Equipment Easy Operation Interface Advanced Technology DTRO Flexible Film Production Machine GLM006
  • Jiezhicheng Automatic DTRO Membrane Production Equipment Easy Operation Interface Advanced Technology DTRO Flexible Film Production Machine GLM006
Place of Origin Suzhou,China
Brand Name JZC
Model Number JZC-GLM006
Minimum Order Quantity 1
Price Negotiable
Packaging Details Negotiable
Delivery Time 60 days
Payment Terms Western Union
Supply Ability 10 Units per 60 days
Product Details
Applicable Material Non-woven Fabric Membrane Thicknessrange 10 To 500 Microns
Controlsystem PLC With Touchscreen Interface Weight Approximately 2000 Kg
Membranetype Ultrafiltration, Nanofiltration, Reverse Osmosis, Microfiltration Operatingtemperaturerange 0°C To 80°C
Production Beat 2-3slices In 1 Minute Coolingsystem Water Cooling Or Air Cooling Options
Automationlevel Semi-automatic To Fully Automatic Equipmenttype Membrane Fabrication Machine
Powersupply 380V, 50Hz, 3-phase Productioncapacity Up To 1000 Square Meters Per Day
Dimensions Length 4000mm X Width 1500mm X Height 1800mm Materialcompatibility Polymeric Materials Such As PVDF, PES, PAN, And Others
Tubular Membrane Diameter φ5、6、8、10mm
Leave a Message
Product Description

Product Description:

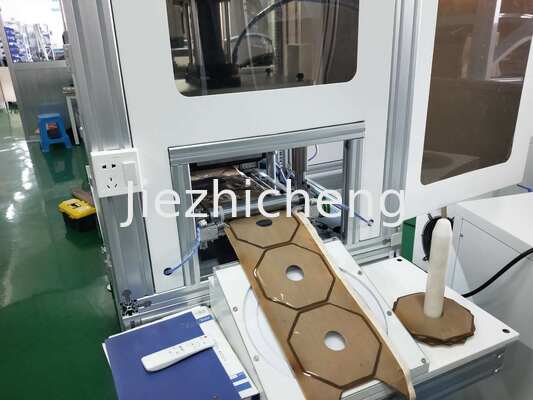

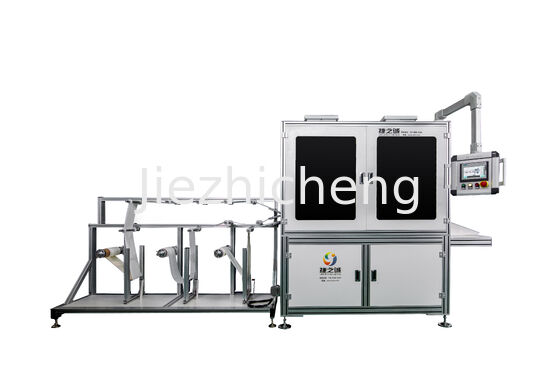

Jiezhicheng Automatic DTRO Membrane Production Equipment Easy Operation Interface Advanced Technology DTRO Flexible Film Production Machine GLM006

Jiezhicheng Automatic DTRO Membrane Production Equipment Easy Operation Interface Advanced Technology DTRO Flexible Film Production Machine GLM006 0

Configuration indtruction:

1. Pneumatic components: SMC cylinder;

2. Electronic control PLC: Omron;

3. Operation interface: use 7- inch touch screen;

4. Displacement sensor: Japan Keyence or Japan Otex;

5. Servo motor: Japan Yaskawa Eletric;

6. Line rail: Taiwan Shangyin;

7. Bearing: NSK Japan Ensk.



Device Parameters:

1. It can produce 2-3 pieces per minute, high productivity;

2. Simple and easy to cooperate, one person can operate three devices;

3. The gap between the welding surface and non-welding surface of the diaphragm is zero, and the mirror surface treatment ensures that the diaphragm is not damaged;

4. Equipped with cooling system and light test function, it can be seen whether the diaphragm is damaged or not. The desalination rate of the diaphragm can reach 99%;

5. It is suitable for feeding different kinds of trays;

6. It has the alarm function of material shortage, which can meet the non-stop refueling and improve production efficiency;

7. One-time completion of coiled pipe, welded pipe and inner scrappng film;

8. Equipped with cloth extension control device to meet the constant tension during welding and ensure stable welding;

9. Equipped with a fabric thickness detection sensor to prevent wrong refueling and improve welding stability.
