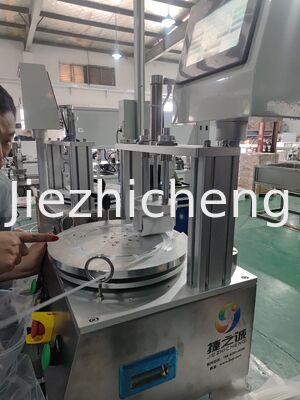

High Efficiency Tube Coiling Machine For Medical Guide Wire Protective Pipe PP PE Medical Tube Winding Equipment Manufacturer JZCHT001

Product Description:

High Efficiency Tube Coiling Machine For Medical Guide Wire Protective Pipe PP PE Medical Tube Winding Equipment Manufacturer JZCHT001

Equipment Functions:

Manual buckle up -manual pipe up from the lifting ring -pressure wheel down -automatic coil-automatic strippingproduct removal;

The coil mould on the table is made of split type, so only the outer plate needs to be replaced when replacing the product;

The coil diameter can be 3,4, 6, 8mm according to the customer's requirements, and the buckle arrangement and pipe length can also be made according to the customer's requirements,

Adopted a newly upgraded ejecting mechanism to eliminate issues such as product arching and buckle damage. The machine supports coiling with guide wires for improved speed and efficiency.

Technical Parametres:

1. Production speed:6-12s/ pcs, requires one person to operate;

2.Efficiency>90%;

3.Percent of pass:>97%;

4.Voltage: AC 220V single phase three wire system;

5.Frequency:50/60Hz;

6.Power:1KW;

7.Control voltage: 24V;

8. Compressed air pressure:>0.6mpa, flow rate: 0.55M3/min

Configuration Specification:

1. Pneumatic components: Airtac cylinder;

2.Electric control PLC: Omron;

3. Operation interface: use 10.5-inch touch screen (optional);

4. Thickness sensor: Omron;

5. Adjustable-speed Motor: Jingyan;

6. Bearing: NSK;

7. Appearance frame: SUS304.

Scope of Application:

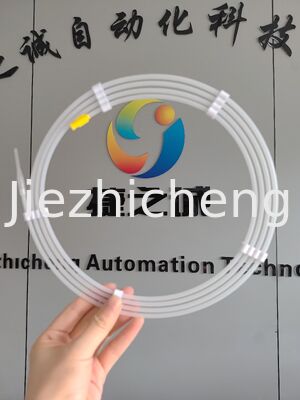

The automatic coil equipment of guide wire casing, PP and PE casing can be used for different sizes of pipes.
