Double‑catheter Bundling & Welding Machine Automated Solution for PVC Hose Coiling, Bundling & Welding Automatic Tube Coiling And Tapping Equipment

Product Description:

Double‑catheter Bundling & Welding Machine Automated Solution for PVC Hose Coiling, Bundling & Welding Automatic Tube Coiling And Tapping Equipment

Equipment Function:

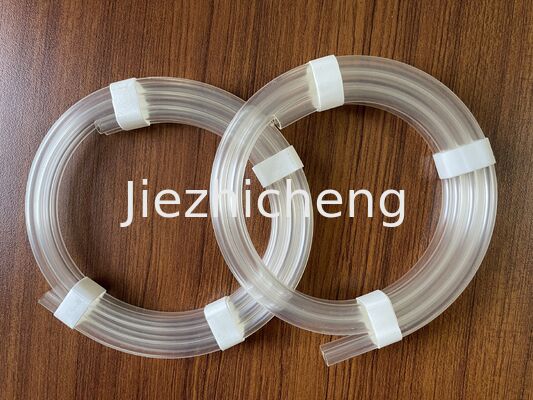

The equipment is used for 980‑1050 or 920‑940 mm in length and 6.4‑6.7 mm in outer diameter, PVC soft, parallel double pipe coil, binding, welding, manual feeding, automatic coil, binding and welding and other functions. The processing process is automated, which is more efficient and cost‑effective.

Production efficiency, 6S /piece;

The length of the welding position between the hose tail and the strapping belt can be set;

After 120 high temperature sterilization, the strapping strength of the strapping catheter remained unchanged;

Different fixture can be designed according to the length of the hose, which is universal;

The compact and reasonable structure design makes the operation and maintenance more humanized;

With automatic counting function.

Technical parametres:

External dimension: 1.4* 0.9* 1.7m;

Power supply: 220V, 50HZ;

Equipment power: 2.0KW;

Air source 0.5‑0.7MPA (the equipment can not work normally when the air pressure is lower than 0.5MPA);

The operation system uses PLC to display the interface.

Configuration Specification:

Pneumatic components: AirTAC cylinder;

Switch control button: IDEC Japan;

PLC: Siem..s;

Operation interface: Si..ens;

Motor: Panas.nic;

Electrical control module: LS;

Switching power supply: Mingwei;

Bearing: NSK;

Welding system: JZC development.

Scope of application:

It is suitable for the coil binding of various plastic pipes. The length of the pipe can be customized without standard.
