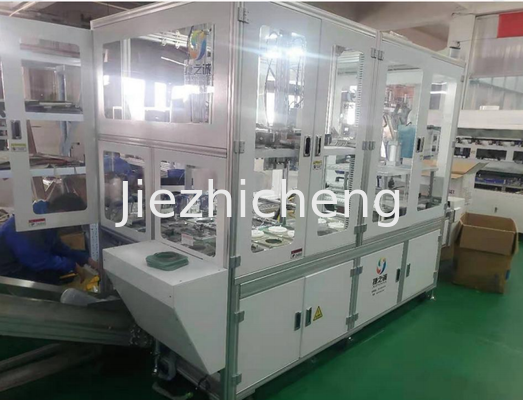

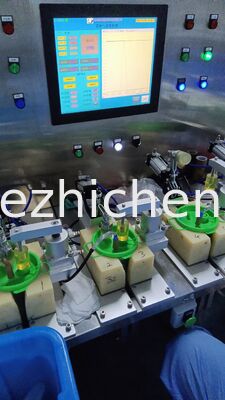

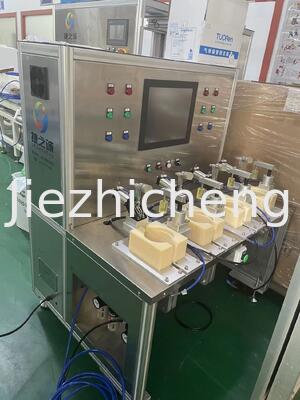

Dual-Station Drainage Bag Welding & Inspection Machine Full Automatic Sealing & Leak Testing for Medical Bag Production JCQ001

Product Description:

Dual-Station Drainage Bag Welding & Inspection Machine Full Automatic Sealing & Leak Testing for Medical Bag Production JCQ001

Equipment Functions:

1.Production efficiency,2 products in 8s;

2.Servo motor driving mode is adopted to make the displacement more accurate;

3.Individuals can operate the machine in the way of one out of two;

4.Different fixtures can be designed according to different drainage bags,which is universal;

Technical Parametres:

1.Overall dimension:5.4*1.4*2.2m

2.Power supply:380V,50Hz.

3.Equipment power:38.0kw.

4.The air source is 0.5～0.7MPa(when the air pressure is lower than 0.5MPa,

the equipment cannot work normally).

Configuration Specification:

1.Pneumatic components:SMC cylinder;

2.Switch control button:Japan Hequan;

3.PLC:Siem.ns;

4.Motor:Pana..nic;

5.Electrical control component:LS;

Automation Technology Co.,Ltd.

6.Switching power supply:Mingwei;

7.Guide rail:silver;

Scope Of Application:

The equipment is used for the welding and detection of drainage bag and plastic cover,manualfeeding,automatic welding and automatic ventilation detection.The newly upgraded dual stationis more efficient and cost-effective.
