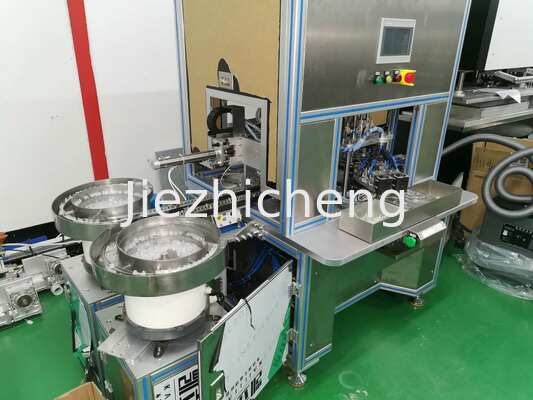

Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001

  • Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001
  • Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001
Place of Origin China
Brand Name JZC
Model Number JZC-ZZB001
Minimum Order Quantity 1
Price Negotiable
Delivery Time 60-90 days
Payment Terms Western Union, T/T
Supply Ability 10 sets per 120 days
Product Details
Materialcompatibility Metal And Plastic Components Airpressurerequirement 0.6-0.8 MPa
Operatingmode Semi-automatic / Fully Automatic Precision ±0.01 Mm
Machinetype Automated Assembly Equipment Powersupply 220V/380V, 50/60Hz
Safetyfeatures Emergency Stop, Safety Guards Materialfeedingmethod Automatic Feeder
Maintenance Easy Maintenance With Modular Design Weight Approximately 800 Kg
Automationlevel Semi-automatic / Fully Automatic Options Machineweight Approx. 500 Kg
Operatingspeed Up To 60 Units Per Minute Productname Check Valve Assembly Machine
Assemblyaccuracy ±0.01 Mm
Leave a Message
Product Description

Product Description:

Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001

Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001

Equipment Function:

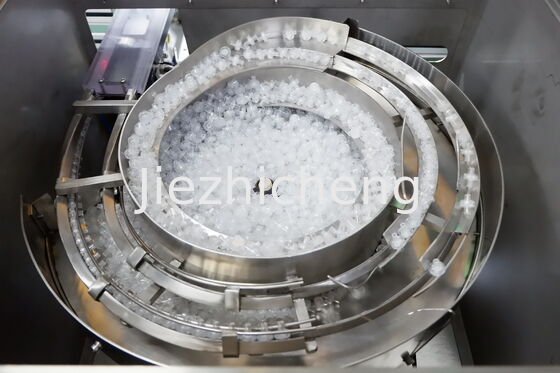

1.Automatically feeding device;

2.With automatic hose positioning and loading mechanism;

3.With automatic coating UV glue and cyclohexanone mechanism;

4.With luer automatic assembly mechanism;

5.It has automatic assembly mechanism of one-way valve;

6.With one-way valve UV curing mechanism;

7.Automatic detection mechanism for product ventilation;

8.Defective product screening agency;

9.Complete safety protection device.

Technical Parametres:

1.Power supply:380V 50Hz;

2.Power:3.0KW;

3.Air supply:0.5-0.7mpa(Equipped with low pressure detection sensor,ensure the productionprocess of good yield);

4.The operating system adopts programmable controller PLC and man-machine interface display.

Configuration Specification:

1.Pneumatic components:SMC cylinder;

2.Electric control PLC:Omron;

3.Operation interfac:Siem.ns;

4.UV lamp and controller:Omron;

5.Digital dispensing machine:Meiyuan;

6.Stepping motor:Pana.onic;

mation TechnologV

7.Servo motor:Pana.onic;

8.Linear guide rail:WIHIN;

9.Bearing:NSK,Japan.

Scope of Application:

Suitable for Luer and hose length of 89mm~100mm assembly and testing.Size canbe customized.
