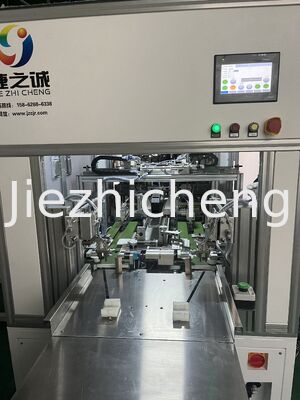

Suction Tube Coiling And Packaging Machine Automatic Winding and Bonding Equipment For Medical Tubes SCT001

Production description:

Suction Tube Coiling And Packaging Machine Automatic Winding and Bonding Equipment For Medical Tubes SCT001

Equipment function:

1. The machine can automatically coil, fill inner bag and outer bag and seal;

2. Adopt cylinder translation drive mode, the displacement is more accurate;

3. One person can operate the machine in a one cut of two way;

4. Production speed: 7s/ 2pcs.

Technical parameters:

1. Weight: 550 kg;

2. Size: 5.4*2.3*1.7m;

3. Voltage: AC 220V single-phrase three-wire system;

4. Feeding mode: The inner and outer bags are automatic feeding.

Configuration instruction:

1. Pneumatic components: SMS cylinder;

2. Operation interface: Omron;

3 Electric PLC: Omron;

4. Sensor: Otis, Japan;

5. Servo motor: Yaskawa motor;

6. Line track: HIWIN, Taiwan;

7. Bearing: NSK Japan.

Scope of application:

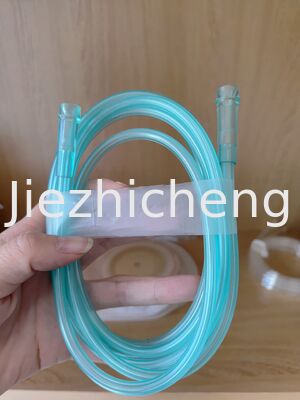

Automatic production equipment for packaging and sealing of nasal oxygen tube, suction tube an other medical tube coil, automatic assembly and packaging of medical consumables can be customized.
