One-Stop Tubular UF Membrane Production Equipment Integrated Tubular UF Membrane Complete Unit for Industrial Membrane Manufacturing GLM001
Product Details
| Applicable Material | Non-woven Fabric | Production Beat | 2-43slices In 1 Minute |
|---|---|---|---|
| Installationtype | Floor Mounted | Dimensions | Customizable Based On Model |
| Membranethicknessrange | 50 To 500 Micrometers | Weight | 500-2000 Kg |
| Diaphragm Shape | Square Oval Circle Etc | Operatingpressurerange | 0-10 Bar |
| Equipmenttype | Membrane Production Line | Membrane Thicknessrange | 10 To 500 Microns |
| Materialofconstruction | Stainless Steel 304/316 | Tubular Membrane Diameter | φ5-10mm |
| Automationlevel | Semi-automatic / Fully Automatic | Powersupply | 220V/380V, 50Hz/60Hz |
| Operatingtemperaturerange | 0-80°C |
Product Description
Product Description
One-Stop Tubular UF Membrane Production Equipment Integrated Tubular UF Membrane Complete Unit for Industrial Membrane Manufacturing GLM001
Applicable Processing Specifications
1.Applicable membrane tube diameters: Supports welding and processing of membrane tubes in multiple sizes including Φ 5, Φ6, Φ8, Φ 10 and Φ 12.7 mm.
2.Applicable non-woven fabric widths: Compatible with four standard widths of non-woven fabric: 17.5 mm, 18.7 mm, 20.5 mm and 24.5 mm. 3.Process parameters for non-woven fabric Adjustable welding overlap width range: 0.5 ~3 mm Applicable total substrate thickness of non-woven fabric: 0.1 ~0.5 mm
4.Production line operating speed Processing speed for imported non-woven fabric: 5.2~6 m/min Processing speed for domestic non-woven fabric: 2.5 ~3.6 m/min Processing speed for imported non-woven fabric: 5.2 ~6 m/min

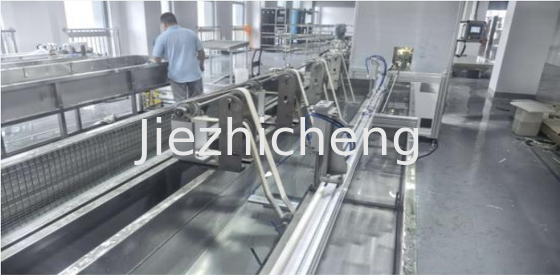

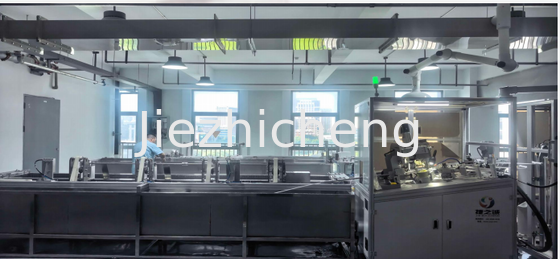

The equipment integrates a full set of advanced automated procedures to accomplish all processes in one station: Tube rolling forming → Membrane tube welding → Inner wall membrane scraping → Medicament soaking → Bubble point performance testing → Pressure resistance and burst test → Natural air drying → Precise fixed-length cutting → Glue filling, sealing and end capping. It fully covers the entire production chain of membrane tubes, featuring high automation and seamless workflow between procedures.
Suzhou Jiezhicheng Automation Technology Co., Ltd Consultation Hotline: +8618013153650
Intelligent and Stable Control System
1.Universal material reel feeding mechanism: Compatible with material reels of various specifications with strong versatility, enabling barrier-free adaptation during material replacement.
2.Acoustic and visual alarm system for material shortage: Monitors remaining material volume in real time and triggers automatic alarms. It allows online material replacement without equipment shutdown, greatly improving the continuous production efficiency of the whole machine.
3.Precision constant tension adjusting device: Stabilizes the feeding tension of non-woven fabric throughout the operation to eliminate tightness deviation, ensuring uniform welding seams and stable welding processes.
4.On-line fabric thickness detection sensor: Identifies thickness specifications of non-woven fabric in real time to prevent processing with wrong materials and further boost the qualified rate of finished welded products.
Configuration Specifications
1.Pneumatic components: SMC air cylinders
2.Electrical control PLC: Omron
3.Operation interface: 10.5-inch touch screen
4.Displacement sensor: German imported SICK
5.Servo motor: Yaskawa (Japan)
6.Linear guide rail: HIWIN from Taiwan, China
7.Bearings: NSK (Japan)

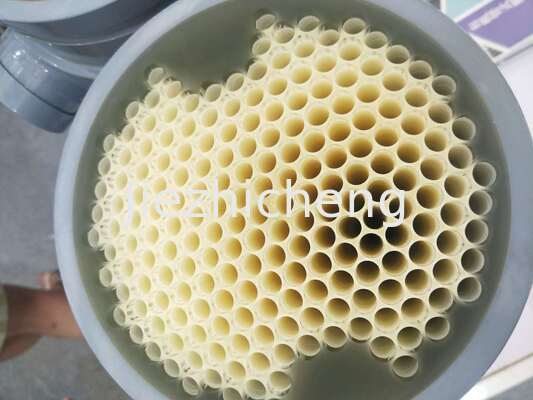

Finished Product Display
